Hot Air Re-Circulation Technology
Protects Products from Moisture, Dust, and Shipping Damage.
Heavy-Duty Fabrication for Continuous Industrial Use
Schneider, Selec & Rotomotive Components for Maximum Uptime
Designed around your Specific Product & Production Requirements

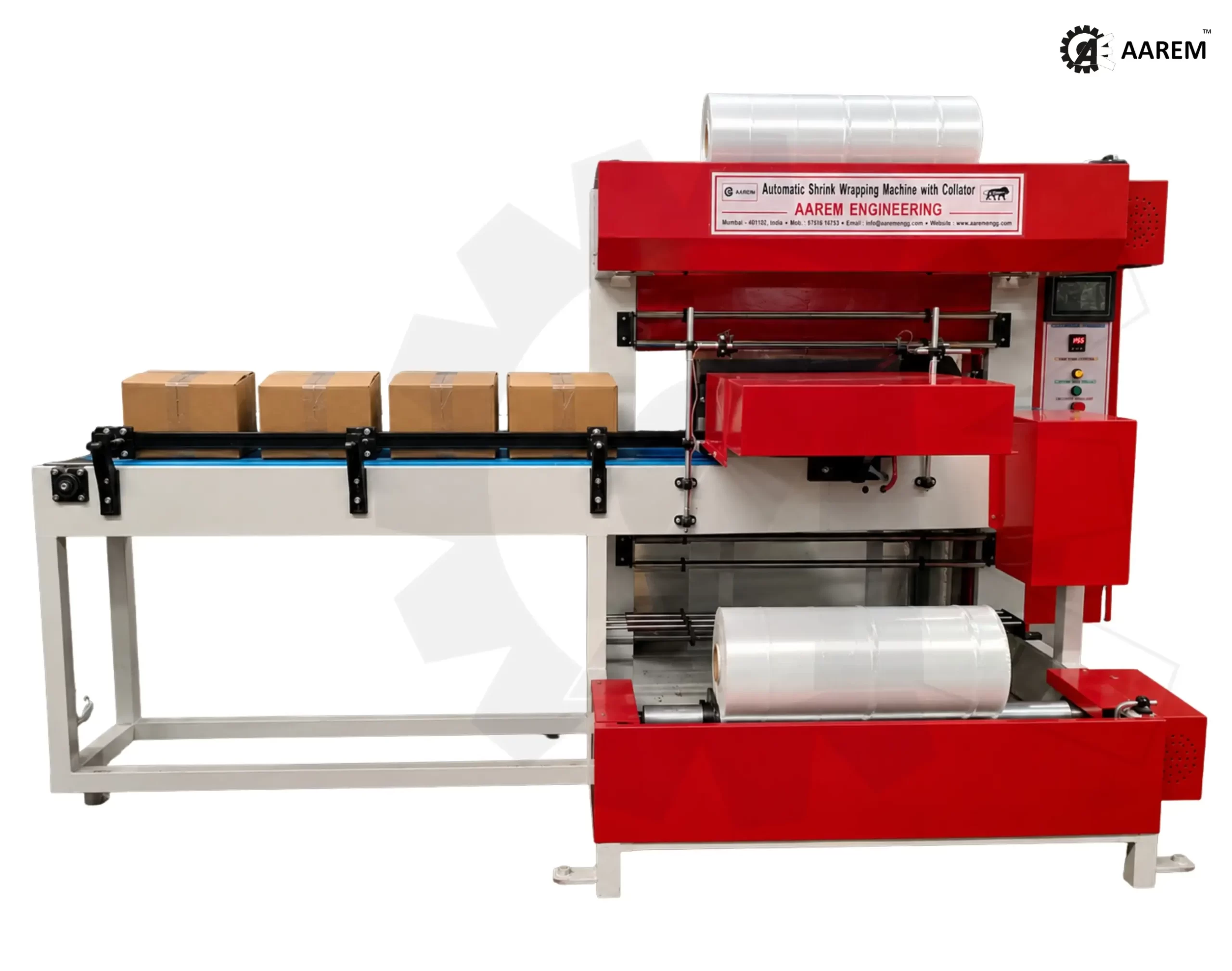

Best for Cartons & Regular-Shaped Products
Fully automatic sealing and shrinking for Inner Carton & Outer Boxes, delivering high-speed, continuous operation.

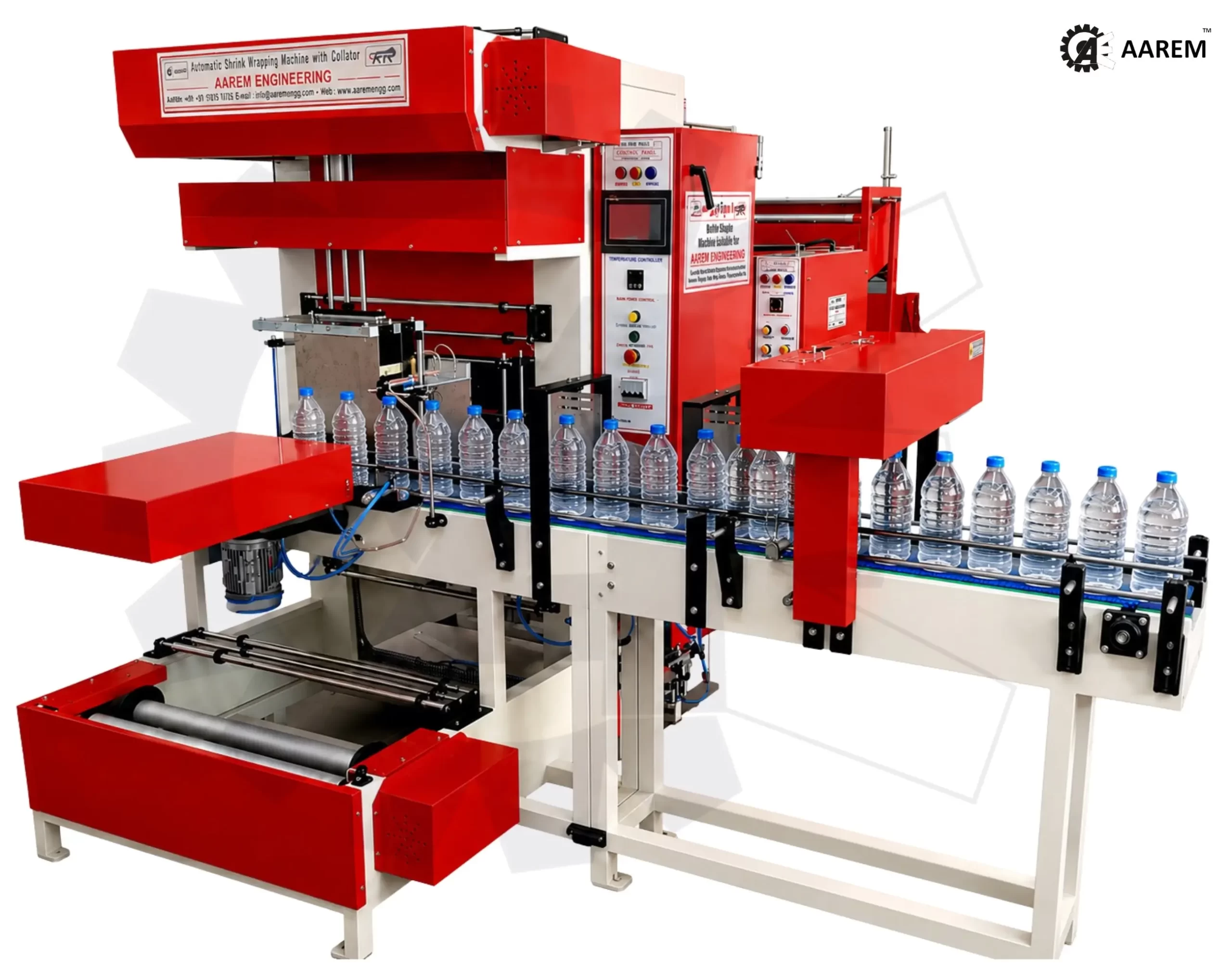

Best for Round & Cylindrical Products
Built for Bottles,Cans and Round Products, with a dedicated infeed that keeps items stable at high production speeds.

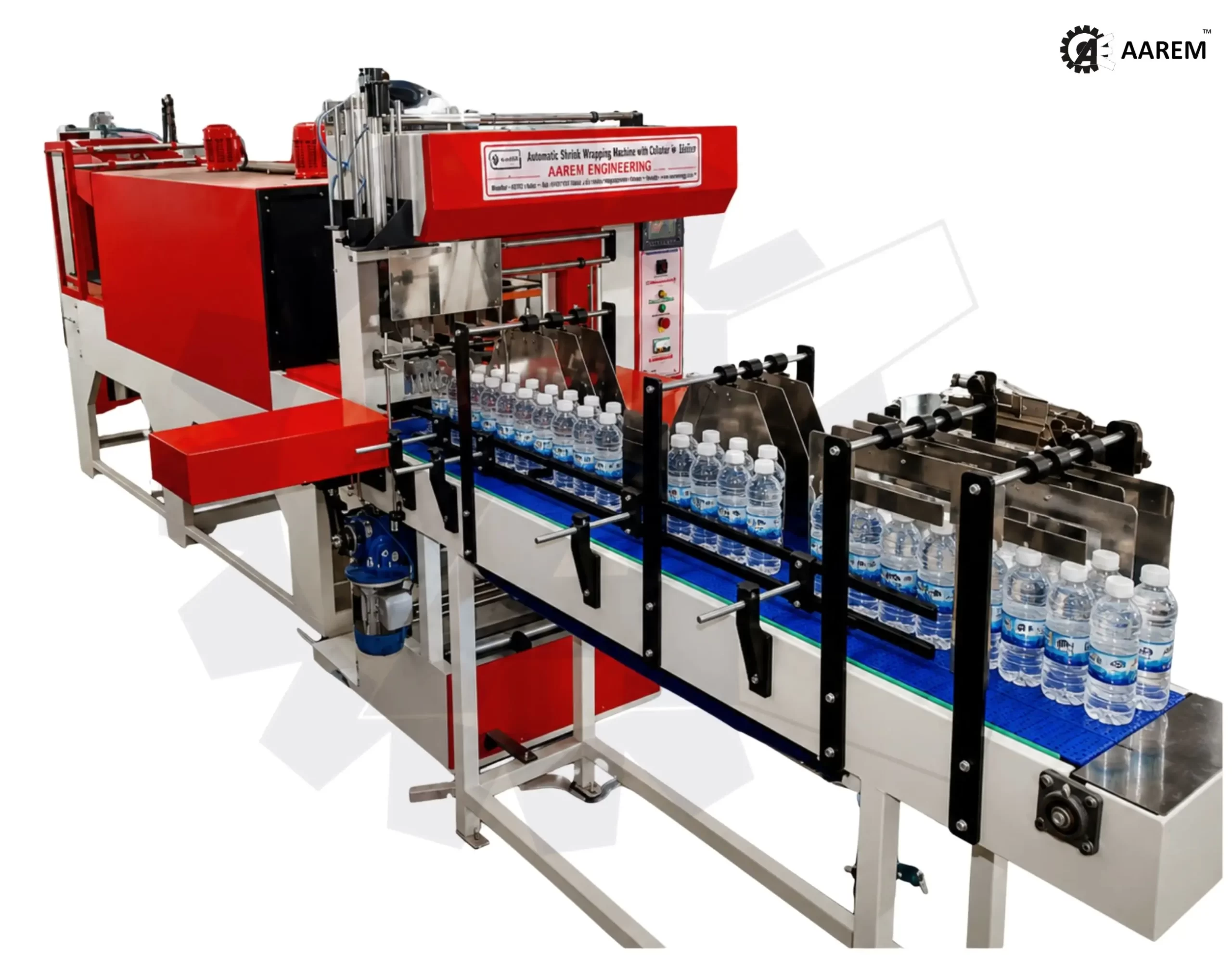

Best for Multipacks & Grouped Products
An integrated collator automatically groups multiple products into a set (e.g., 2×3) before sealing, making it ideal for retail multipacks and bundled products.
The versatile all-rounder
Best for Mixed Products & Moderate Volume
Runs Bottles, Boxes and a Wide Range of Products on a Single Machine — the Flexible, Cost-Effective Choice When Your Line Handles More than One Product Type.
Still Confused... Kindly Speak with Our Engineering Team to Find the Most Cost-Effective Solution for your Requirement
| FEATURE | Semi Automatic Web Sealer With Shrink Tunnel Machine | Automatic Web Sealer With Shrink Tunnel Machine - Box | Automatic Web Sealer With Shrink Tunnel Machine - Bottle | Automatic Web Sealer Shrink Tunnel Machine With Collator |
|---|---|---|---|---|
| Max Product Size | 450 x 300 x 300 mm (L x W x H) (Box / Bottle / Packaged Water 1 Ltr) 450 x 300 x 380 mm (L x W x H) (Box / Bottle / Packaged Water 2 Ltr) | Custom Built | 450 x 300 x 300 mm (L x W x H) (1 Ltr Bottle / Packaged Water) 450 x 300 x 380 mm (L x W x H) (2 Ltr Bottle / Packaged Water) | Custom Built |
| Programmable Logic Controller With Fault Display (PLC) | Yes | If Required | Yes | Yes |
| Human-Machine Interface (HMI) | No | If Required | Yes | Yes |
| Film Unwinding Motors | 2 | If Required | 2 | 2 |
| Hot Air Blower | 1 | Custom Built | 2 | Custom Built |
| Chamber Length | 1200 mm | Custom Built | 1500 mm / 2000 mm | Custom Built |
| Machine Size | 3600 x 1350 x 1800 mm (L x W x H) | Custom Built | 5350 x 2100 x 2100 mm (L x W x H) | Custom Built |
| Machine Weight | 900 kgs | Custom Built | 1100 kgs | Custom Built |
| Air Requirement | 7 – 9 cfm at 80 psi | 7 – 9 cfm at 80 psi | 18 cfm at 80 psi | Custom Built |
| Power Consumption | 3 Phase, 440 VAC 50 Hz, 10-12 kW | 3 Phase, 440 VAC 50 Hz, 10-12 kW | 3 Phase, 415 VAC, 20-22 kW | Custom Built |
| Collection Tray / Cooling Fan | Yes | Yes | Yes | Yes |
| CE Certified Bought Outs | Yes | Yes | Yes | Yes |
| Film Type | Shrink LDPE Film Rolls | Shrink LDPE Film Rolls | Shrink LDPE Film Rolls | Shrink LDPE Film Rolls |
| Collection Tray Length | 540 mm | 850 mm | 850 mm | Custom Built |
| Tunnel Input | 450 mm | 450 / 600 mm | 450 / 600 mm | Custom Built |
| Tunnel Output | 550 mm | 550 / 750 mm | 550 / 750 mm | Custom Built |
| Output | 5-6 Packs / Min | Depends Upon Product Size | Up To 15 Packs Per Minute | Depends Upon Matrix Size |
Send us your product sample for a FREE Sealing & Shrink Test.
Purchasing a Web Sealer Shrink Tunnel is a Long-Term Investment. That’s Why Every Machine is Backed by Experienced Engineers, Reliable Support, and Industrial-Grade Service Throughout its Life.
Professional Setup and Machine Commissioning Directly at your Factory.
Hands-On Operational Training to Ensure Safe and Highly Efficient Use.
Comprehensive Protection against Manufacturing Defects for Total Peace of Mind.
Fast and Reliable Availability of OEM Parts to Minimize Production Downtime.
Quick Troubleshooting and Assistance via Phone, WhatsApp, or Video Call.
Proactive Maintenance Schedules and Guidance to Maximize Machine Life.
Our Goal Isn’t Just to Deliver a Machine—it’s to Keep Your Production Running Efficiently for Years.
Semi-Automatic – Suitable for Bottles, Boxes and Mixed Products on a Single Machine. Offers Greater Flexibility and is Cost Effective for Moderate Production Volumes.
Automatic – Designed for Highspeed , Continuous Production. Each Machine is Customised for a Specific Product Type such as Boxes, Bottles or Collated Multipacks thus Ensuring Maximum Efficiency & Output.
Machine Selection Depends on your Product Type, Packing Speed and Production Volume. Share your Product Details and Our Engineers will Recommend the Best Solution at No Extra Cost.
Automatic Bottle and Box Machines are Specially Designed to handle the Unique Characteristics of Each Product. This Ensures Better Product Stability, Higher Packing Speeds and More Reliable Performance then a Single Machine Designed for Multiple Product Types.
A Collator Automatically Arranges Multiple Products into a Predefined Pack Pattern ( such as a 2 x 3 Pack )before Sealing & Shrinking. It Creates Neat & Consistent Multipacks & Bundles thus Eliminating Manual Product Arrangement which in turn Enhances Overall Line
Efficiency.
All Our Machines use LDPE Shrink Film Offering Durable, Flexible and Recyclable Packaging. It Protects Products from Moisture and Damage while Ensuring Secure Packaging and Cost-Effective Transportation.
Yes! Simply Send us your Product Sample and We’ll Perform a Free Sealing & Shrink Wrapping Trial and Our Engineers will Recommend the Most Appropriate Packaging Solution for your Application.
Yes! We Provide Pan-India Installation, Commissioning, Operator Training and Reliable After-Sales Technical Support. Our Services are Backed by Genuine Spare Parts and a Manufacturing Warranty to Ensure Long-Term Machine performance.
Delivery Timelines Depend on the Machine Model and Level of Customisation. Standard Machines are Delivered Sooner then the Custom-Built Solutions and the estimated Delivery Schedule is Confirmed with your Quotation. Every Machine Includes a Manufacturing Warranty.
