MINI SHRINK TUNNEL MACHINE

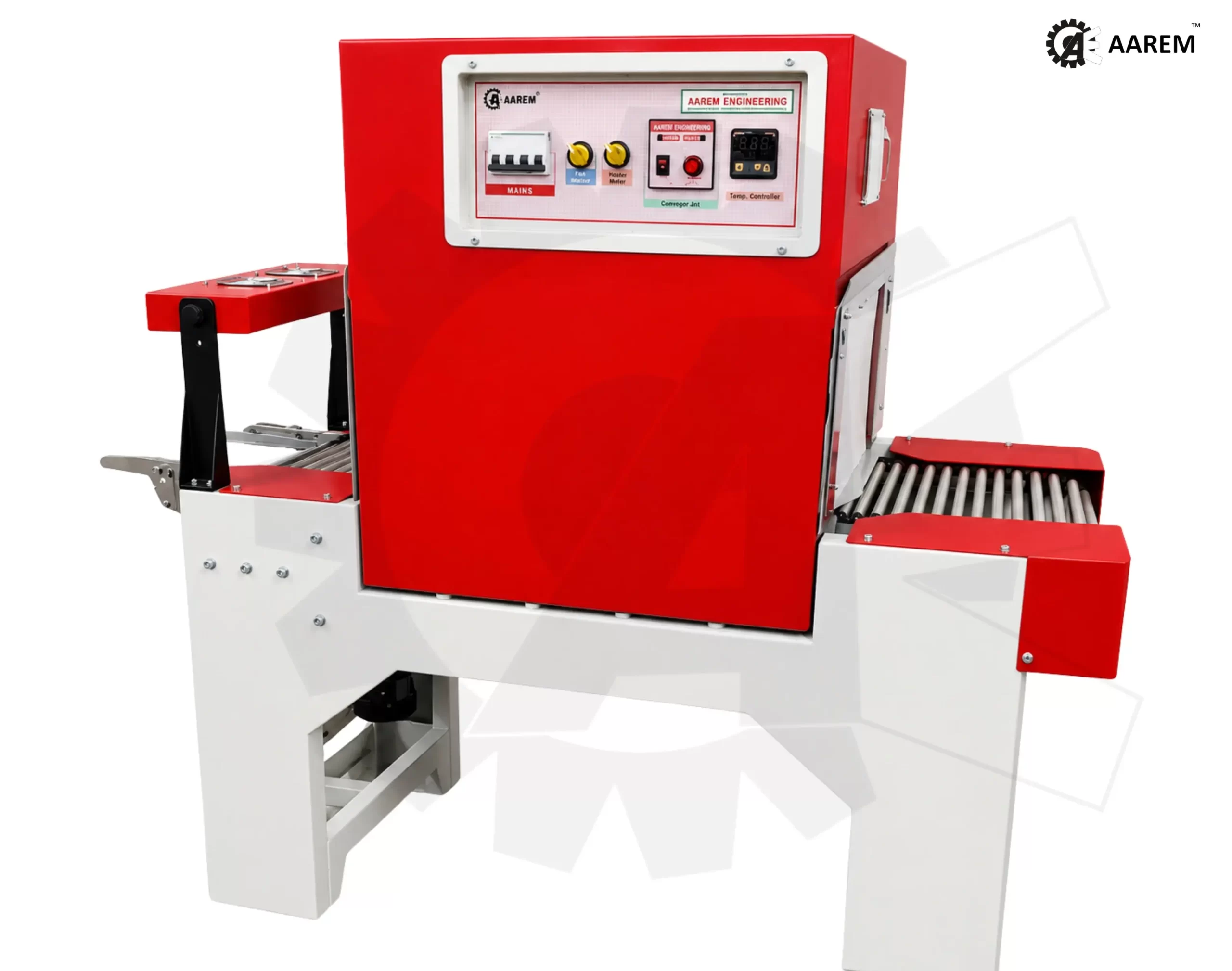

Mini Shrink Tunnel Machine Manufactured by Aarem Engineering, Mumbai, Maharashtra, India.
Backed by 22+ years of manufacturing experience and 4,500+ machines installed across Pan-India and global markets, Aarem Engineering’s Mini Shrink Tunnel Machine (Model MT/101) is a compact, space-saving shrink packaging solution built for small and medium-sized products. Featuring adjustable temperature controls and variable conveyor speed, this manual shrink tunnel machine delivers uniform heat distribution across every pack – resulting in secure, tamper-evident, and visually attractive packaging. Engineered for energy efficiency and low maintenance, it is the ideal shrink tunnel machine for businesses seeking reliable industrial-grade performance in a minimal footprint.
How Mini Shrink Tunnel Machine Works?
This Manual Shrink Wrapper Uses a Controlled Heat-Shrink Process to Deliver Consistent, Tamper-Evident Packaging:
Product Loading — The Product, Pre-Wrapped in Shrink Film (PVC, POF, or LDPE), Is Placed onto the Conveyor Belt.
Conveyor Transport — The Belt Carries the Wrapped Product into the 600 mm Shrink Tunnel Chamber at an Adjustable Speed of 0–10 RPM.
Heat Application — Inside the Chamber, Hot Air Circulates Uniformly around the Product, Activating the Film on All Sides.
Film Shrinking — Controlled Heat Causes the Film to Shrink Tightly and Evenly around the Product, Forming a Secure and Transparent Seal.
Exit and Cooling — The Packaged Product Exits the Tunnel and Cools Naturally, Completing the Shrink Packaging Process Ready for Dispatch.
Temperature and Conveyor Speed Settings on This Shrink Tunnel Machine Can Be Independently Adjusted to Suit Different Film Types and Product Dimensions.
Technical Specifications
| Model No. | MT/101 |
|---|---|
| Machine Type | Manual |
| Output Capacity | 4–6 Packs per minute |
| Maximum Product Size | 250 × 150 mm |
| Film Compatibility | PVC, POF & LDPE Shrink Films |
| Tunnel Chamber Length | 600 mm |
| Power Consumption | 3–4 KW |
| Voltage | 440 VAC |
| Conveyor Speed | 0–10 RPM (Adjustable) |
| Machine Dimensions | 1400 × 650 × 1500 mm (L × W × H) |
| Machine Weight | Approx. 100 Kg |
Note: All Parameters Are Approximate and Subject to Change Without Prior Notice.
Key Features of a Small Shrink Wrap Machine
Compact and Space-Saving Design:- Built for Small Production Floors, This Tabletop Shrink Tunnel Delivers Full-Scale Packaging Performance While Occupying Minimal Floor Space — Ideal for Workshops and Compact Manufacturing Setups.
Uniform Hot Air Circulation:- A Balanced Hot Air Circulation System Ensures Consistent Shrink Quality on All Sides of the Product, Eliminating Uneven or Incomplete Shrink Results During Every Cycle.
Adjustable Temperature and Conveyor Speed Controls:- Fine-Tune Heat Settings and Belt Speed Independently to Match Specific Shrink Films and Product Sizes, Ensuring Optimal Shrink Results with Every Production Run.
Energy-Efficient Heating System:- Designed for Minimal Power Consumption 3 to 4 kW While Maintaining High-Quality Output, Making It Cost-Effective for Daily and Continuous Operations.
Heavy-Duty Insulated Chamber:- The Insulated Tunnel Chamber Retains Heat Efficiently, Reduces Energy Loss, and Maintains a Stable Internal Shrink Environment for Consistent and Repeatable Output.
Multi-Film Compatibility:- Fully Compatible with LDPE, PVC, POF, and Other Standard Shrink Films, Offering Production Flexibility across a Wide Range of Packaging Materials.
Easy Operation and Low Maintenance:- Simplified Controls and a Robust Mechanical Design Ensure Minimal Downtime, Easy Day-to-Day Operation, and No Requirement for Specialized Operator Training.
Robust Industrial Construction:- Built with Heavy-Duty Materials for Long-Term Durability under Continuous Industrial Use, Ensuring Reliable Performance across Demanding Production Environments.
CE-Certified Components:- All Bought-Out Components Are CE Certified, Supporting Compliance with Applicable International Quality and Safety Standards.
Applications of Mini Shrink Tunnel Machine
This Compact Shrink Packaging Machine (Model MT/101) Is Engineered to Deliver Reliable Shrink Packaging across a Wide Range of Industries and Product Types:
- Food & Beverage – Tamper-Evident Shrink Wrapping for Bottles, Cans, Trays, and Packaged Food Products.
- Pharmaceuticals – Secure and Hygienic Packaging for Medicine Bottles, Blister Packs, and Pharmaceutical Cartons.
- Cosmetics – Attractive Shrink-Wrapped Presentation for Lotions, Creams, Serums, and Personal Care Products.
- FMCG Products – Consistent Packaging for Fast-Moving Consumer Goods across Various Retail Channels.
- Electrical & Electronic Components – Protective Shrink Packaging for Sensitive Electronic and Electrical Components.
- Stationery – Clean and Professional Packaging for Notebooks, Diaries, Books, and Office Supplies.
- Gift Articles – Premium Shrink-Wrapped Presentation for Gift Boxes, Hampers, and Bundled Product Sets.
- Retail Packaging – A Versatile Shrink Packaging Solution for Shelf-Ready and Retail-Display Packaging across Multiple Product Categories.
Who This Machine Is For
The MT/101 Is Built for Small-Batch and Workshop-Scale Operations — Ideal for Businesses Packing up to a Few Hundred Units per Day, D2C Brands Shipping Direct-to-Customer, and Manufacturers Testing Shrink Packaging Before Committing to a Fully Automatic Packaging Line. If You Are Running Continuous Production or Handling High Daily Volumes, a Standard Shrink Tunnel Machine May Be a Better Fit.
Mini Shrink Tunnel Machine vs Standard Shrink Tunnel Machine
| Feature | Mini Shrink Tunnel Machine (MT/101) | Standard Shrink Tunnel Machine |
|---|---|---|
| Best Suited For | Small-Batch and Workshop-Scale Production | Continuous and Daily Production Lines |
| Maximum Product Size | 250 × 150 mm | 450 × 300 mm |
| Chamber Length | 600 mm | 1200 mm |
| Power Consumption | 3–4 kW | 9–12 kW |
| Film Compatibility | PVC, POF, LDPE | PVC, POF, LDPE |
Need a Different Size or Higher Production Capacity? Explore Our Complete Range of Shrink Tunnel Machines and Customized Solutions.
Why Choose Aarem Engineering for Your Shrink Tunnel Machine?
Aarem Engineering Has Been Manufacturing Industrial Packaging Machinery for Over 22+ Years, with 4,500+ Machines Installed and Exports to 27+ Countries Worldwide. We Build Purpose-Made Packaging Machines Designed for Performance, Durability, and Ease of Operation.
22+ Years of Manufacturing Experience — Over Two Decades of Engineering Expertise Built into Every Machine.
4,500+ Machines Installed — A Proven Track Record Trusted by Manufacturers across Multiple Industries.
Exporting to 27+ Countries — Global Reach Supporting Customers across International Markets.
Direct Manufacturer — Purchase Directly from the Manufacturer with Competitive Pricing, No Middlemen, and Complete Technical Support.
Customization Available — Machine Parameters Can Be Configured to Match Your Specific Production and Packaging Requirements.
CE-Certified Components — Selected Bought-Out Components Are CE Certified, Supporting Applicable Safety and Quality Requirements.
Energy-Efficient Engineering — Machines Designed for Efficient Power Consumption Without Compromising Output Quality or Performance.
Low-Maintenance Design — Industrial-Grade Construction Designed for Easy Servicing, Reduced Spare-Part Requirements, and Minimal Operational Downtime.
After-Sales Support — Dedicated Technical Assistance and Spare Parts Support from Aarem Engineering After Purchase.
Frequently Asked Questions (FAQ's)
Q1. What Is a Mini Shrink Tunnel Machine?
A Mini Shrink Tunnel Machine Is a Compact Packaging Machine That Uses Controlled Heat to Shrink Plastic Film Tightly around a Product, Creating a Secure, Tamper-Evident, and Professional-Looking Package. Aarem Engineering’s Model MT/101 Is Designed Specifically for Small and Medium-Sized Products, with a Maximum Product Size of 250 × 150 mm.
Q2. What Shrink Films Are Compatible with This Machine?
The AAREM Mini Shrink Tunnel Machine (Model MT/101) Is Compatible with PVC (Polyvinyl Chloride), POF (Polyolefin), and LDPE (Low-Density Polyethylene) Shrink Films, Offering Flexibility for a Wide Range of Shrink Packaging Applications across Different Industries.
Q3. What Is the Production Output of This Machine?
The Machine Delivers a Production Capacity of Approximately 4 to 6 Packs per Minute, Making It Suitable for Small- to Medium-Scale Packaging Operations and Entry-Level Production Environments. Actual Output May Vary Depending on Product Size, Shrink Film Type, and Operating Conditions.
Q4. What Is the Maximum Product Size This Machine Can Handle?
The Mini Shrink Tunnel Machine Accommodates Products with a Maximum Size of 250 mm × 150 mm (Width × Height).
Q5. How Much Power Does This Shrink Tunnel Machine Consume?
The Shrink Tunnel Machine Has a Power Consumption of Approximately 3 to 4 kW and Operates on a 440 VAC Power Supply. It Is Designed for Efficient Operation in Industrial Packaging Applications.
Q6. Are the Machine Components CE Certified?
Yes. The Bought-Out Components Used in Aarem Engineering’s Mini Shrink Tunnel Machine Are CE Certified, Supporting Applicable Safety and Quality Requirements. Please Contact Aarem Engineering for Specific Information Regarding the Certification and Compliance Documentation Available for the Machine and Its Components.
Q7. What Are the Dimensions and Weight of the Machine?
The Mini Shrink Tunnel Machine Has Overall Dimensions of 1400 × 650 × 1500 mm (L × W × H) and Weighs Approximately 100 kg.
Q8. Can This Machine Be Customized?
Yes. Aarem Engineering Provides Customization Options to Configure Machine Parameters Based on Your Specific Production Capacity, Shrink Film Type, Product Dimensions, and Packaging Requirements. Contact Our Team to Discuss a Tailored Shrink Packaging Solution for Your Application.
Request a Quote for the Mini Shrink Tunnel Machine
Interested in the Mini Shrink Tunnel Machine (Model MT/101)? Fill Out the Enquiry Form Below, and Our Packaging Experts Will Get in Touch with You to Discuss Your Requirements, Provide Pricing and Technical Specifications, Explore Customization Options, and Recommend the Right Solution for Your Production Line.
Whether You Are Looking for a Standard Machine or a Customized Configuration, We Are Here to Help You Find the Right Shrink Packaging Solution for Your Business.
Fill Out the Form Below, and Our Team Will Contact You Shortly.
