STANDARD SHRINK TUNNEL MACHINE

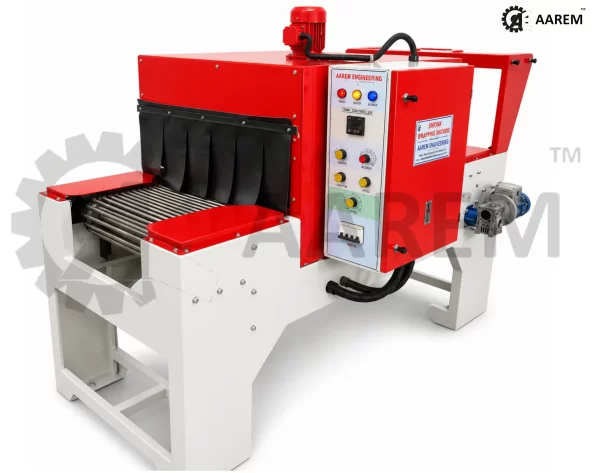

Standard Shrink Tunnel Machine Manufactured by Aarem Engineering, Mumbai, Maharashtra, India.
Since 2002, AAREM Engineering has Installed 4,500+ Machines across India and Global Markets. The Standard Shrink Tunnel Machine is Our Industrial-Scale Model, Built for Continuous Production Lines rather than Small Batches. It Features a 1200 mm Insulated Tunnel Chamber, Handles Products up to 450 × 300 mm, and Includes a Hot Air Recrystallization System with Heavy-Gauge M.S. Construction and SS Roller or Mesh Conveyor Options — Built to Run Multi-Shift, High-Volume Operations across Food, Pharmaceutical, Textile, and FMCG Production Lines.
How Does the Standard Shrink Tunnel Machine Work?
This Standard Shrink Wrapper Uses a Controlled, Continuous Heat-Shrink Process for High-Volume Production:
- Product Loading — Pre-wrapped Product is Placed onto the SS Roller/Mesh Conveyor at the Infeed.
- Conveyor Transport — An AC Variable-Speed Drive Carries the Product through the Insulated Tunnel at a Controlled, Adjustable Speed.
- Heat Application with Hot Air Recrystallization — A Hot Air Blower Circulates Heat Uniformly around the Product. The Recrystallization System Reclaims and Reheats Circulating Air, Holding a Stable Internal Temperature while Cutting Power Draw.
- Film Shrinking — Two-Layer Insulation Holds Heat Evenly across the Tunnel, Producing a Tight, Uniform Seal on All Sides — Even on Larger Products.
- Exit, Cooling & Collection — The Packaged Product Exits, Passes through an Integrated Cooling Fan, and Lands in the Collection Tray — Dispatch-Ready.
Temperature, Conveyor Speed, and Hot Air Recirculation are Configurable to Suit Different Film Types, Product Sizes, and Production Volumes.
Technical Specifications
| Machine Type | Manual |
|---|---|
| Output Capacity | 6–8 packs / minute |
| Maximum Product Size | 450 × 300 mm |
| Film Compatibility | PVC, POF & LDPE Shrink Films |
| Tunnel Chamber Length | 1200 mm |
| Power Consumption | 9-12 kW |
| Conveyor Speed | 0–10 RPM (Adjustable) |
| Machine Dimensions | 9 ft × 5 ft × 6 ft (L × W × H) |
| Machine Weight | Approx. 450 Kg |
Note: All Parameters Are Approximate and Subject to Change Without Prior Notice.
Key Features of the Standard Shrink Tunnel Machine
- Robust M.S. Construction — Heavy-Gauge Mild Steel Built for Long-Term Durability under Continuous, High-Volume Industrial Use.
- AC Drive – Variable Speed Conveyor — Fine-Tune Belt Speed to Match Product Size, Film Type, and Line Throughput, Ensuring Consistent Shrink Quality across Production Runs.
- Two-Layer Insulation — A Double-Insulated Tunnel Chamber Minimizes Heat Loss, Stabilizes Internal Temperature, and Reduces Energy Consumption.
- Hot Air Recrystallization System — Reclaims and Reheats Circulating Air inside the Chamber, Maintaining Uniform Heat Distribution while Lowering Power Draw versus Single-Pass Heating.
- S.S. Roller Conveyor — Stainless Steel Rollers Provide Smooth, Corrosion-Resistant Product Movement Suited to Hygiene-Sensitive Industries like Food and Pharmaceuticals.
- Mesh Conveyor — Allows Uniform Hot Air Penetration from below the Product, Improving Shrink Consistency on Irregular or Multi-Sided Packs.
- Electronic Temperature Controller — Precise Digital Control over Chamber Temperature Ensures Repeatable Shrink Results Pack after Pack.
- Cooling Fan + Collection Tray — Rapidly Cools Finished Packs on Exit and Collects them for Immediate Handling, Reducing Bottlenecks at Line End.
- Aesthetic Control Panel — Clean, Operator-Friendly Layout Simplifies Daily Operation and Cuts Training Time for New Staff.
- Shrink Tunnel for Big Products — Handles Products up to 450 × 300 mm, Larger than Compact or Mini Shrink Tunnel Models.
- Custom-Built & Stainless-Steel (GMP) Options — Available in Custom-Built Configurations and Full Stainless-Steel GMP Construction for Pharmaceutical and Food-Grade Environments.
Applications of the Standard Shrink Tunnel Machine
AAREM Engineering’s Standard Shrink Tunnel Machine Delivers Reliable, Continuous Shrink Packaging across a Wide Range of Industries:
- Pesticide Bottles — Secure, Tamper-Evident Shrink Wrapping that Withstands Handling and Transport in Agrochemical Supply Chains.
- Pharmaceutical Bottles & Tubes — Hygienic, GMP-Compatible Shrink Packaging for Medicine Bottles, Ointment Tubes, and Pharma Cartons.
- Textile Yarn Cones & Fabric Rolls — Uniform Shrink Wrapping for Bulky, Irregularly Shaped Textile Products on High-Volume Lines.
- Sewing Thread Cones — Consistent, Shelf-Ready Packaging for Bulk Thread Cone Production.
- Plastic Household Ware — Clean, Retail-Ready Shrink Packaging for Household Plastic Product Lines.
- Stationery Items — Crayon Boxes, Pen/Pencil Boxes, etc. — Professional, Shelf-Ready Presentation for Bulk Stationery Manufacturing.
- Gift Articles — Premium Shrink-Wrapped Presentation for Gift Boxes, Hampers, and Bundled Product Sets at Higher Volumes.
Who This Machine Is For
The Standard Shrink Tunnel Machine is Built for Continuous, Daily Production — Ideal for Manufacturers Packing Several Hundred to a Few Thousand Units per Day, Businesses Handling Larger Product Sizes (up to 450 × 300 mm), and Companies that have Outgrown a Mini or Tabletop Shrink Tunnel.
If You’re Packing Small Batches or Testing Shrink Packaging before Scaling up, Our Mini Shrink Tunnel Machine may be a Better Starting Point. If You Need Fully Custom Chamber Sizing or Higher Power Configurations for Oversized or High-Volume Production, Explore Our Customised Shrink Tunnel Machine below.
Standard Shrink Tunnel vs Customised (Heavy Duty) Shrink Tunnel Machine
| Feature | Standard Tunnel | Customised Tunnel |
|---|---|---|
| Maximum Product Size | 450 × 300 mm | As per requirement |
| Chamber Length | 1200 mm | As per requirement |
| Power Consumption | 9–12 kW | 16–18 kW |
| Hot Air Blower | 1 Unit | 2 Units |
Need Oversized Chamber Dimensions, Higher Power Configuration, or a Fully Stainless-Steel GMP Build? Explore Our Customised Shrink Tunnel Solutions, Engineered to Your Exact Production Requirement.
Why Choose Aarem Engineering for Your Shrink Tunnel Machine?
Running a Continuous Production Line Means the Shrink Tunnel can’t be the Machine that Slows Everything else down. Since 2002, AAREM Engineering has Built Shrink Packaging Equipment Specifically for that Pressure Point — over 4,500 Machines now Run across India and 27+ Export Markets, Many on Multi-Shift, High-Volume Lines like the Ones the Standard Tunnel is Built for.
Because AAREM Manufactures in-House, There’s no Distributor Markup and no Gap between the Person Quoting the Machine and the Person who Built it — Enquiries Go Straight to the Factory, Meaning Faster Technical Answers and Direct Pricing.
The Standard Tunnel is Engineered around Uptime: Two-Layer Chamber Insulation and Hot Air Recrystallization Keep Running Costs down on Continuous Shifts, while the Heavy-Gauge M.S. Body and Low-Maintenance Mechanical Design Keep Unplanned Downtime Rare. All Bought-Out Components Carry CE Certification, and if Your Line Needs Something the Standard Configuration Doesn’t Cover — a Larger Chamber, Higher Power Rating, or a Fully Stainless-Steel GMP Build — AAREM’s Team Builds to that Spec rather than Asking You to Compromise.
Frequently Asked Questions (FAQ's)
Q1. What Is a Standard Shrink Tunnel Machine?
A Standard Shrink Tunnel Machine is an industrial shrink wrapping machine built for continuous, multi-shift production. It has a 1200 mm insulated tunnel and processes products up to 450 × 300 mm — about three times the tunnel length and twice the product capacity of a mini or tabletop shrink tunnel machine. This makes it suited to factories with high daily output that need a machine that won’t slow the line.
Q2. What Shrink Films Are Compatible with This Machine?
This machine works with PVC, POF, and LDPE shrink films, with no mechanical changeover required to switch between them. You can choose the film type based on product cost, clarity, or sustainability needs, and simply adjust the temperature and conveyor speed on the controller.
Q3. What Is the Production Output of This Machine?
Output depends on product size, film type, and conveyor speed, with a typical range of 6–8 packs per minute. Since speed and temperature are set independently, the same shrink tunnel machine can be tuned for faster throughput on smaller packs or slower, more thorough shrinking on larger 450 × 300 mm products.
Q4. What Is the Maximum Product Size This Machine Can Handle?
Up to 450 × 300 mm through the 1200 mm chamber — noticeably larger than a mini shrink tunnel’s 250 × 150 mm limit. That headroom matters for bigger cartons, multi-pack bundles, and bulky items like textile cones or fabric rolls that a compact unit simply can’t fit.
Q5. How Much Power Does This Shrink Tunnel Machine Consume?
9–12 kW. Two-layer chamber insulation and the hot air recrystallization system both work to hold heat inside the tunnel instead of losing it — on a machine running multiple shifts a day, that difference adds up over a full production year compared to a single-pass heating system.
Q6. Are the Machine Components CE Certified?
Yes — all bought-out components on the Standard Shrink Tunnel Machine are CE certified, which matters if you’re exporting finished goods and need to document compliance up the supply chain.
Q7. What Are the Dimensions and Weight of the Machine?
The Standard Shrink Tunnel Machine measures approximately 9 ft × 5 ft × 6 ft (L × W × H) and weighs around 450 kg. As a reference, this is a larger footprint than the Mini model’s 1400 × 650 × 1500 mm, since the Standard’s 1200 mm chamber and heavier-duty conveyor need more floor space.
Q8. Can This Machine Be Customised?
Yes. Beyond the standard build, AAREM also builds fully customised shrink tunnels to your specifications — including custom chamber dimensions to match your product, higher power options (16–18 kW with dual hot air blowers is a common upgrade), and full stainless-steel GMP construction for pharma or food-grade lines that require a hygienic build instead of mild steel.
Get a Quote for the Standard Shrink Tunnel Machine
If you’re outgrowing a mini or tabletop shrink wrapper, or specifying a shrink tunnel for a new production line, share your product size, target daily output, and film type below. AAREM’s team will get back to you with pricing, lead time, and whether the Standard Shrink Tunnel Machine fits as-is or needs adjusting — chamber size, power rating, or blower count — for your volume.
Fill in the form and our team will follow up directly, with no distributor hand-off.
